Why Shutters Start Grinding: Causes and Fixes
Table of Contents
- What Causes Shutters to Start Grinding
- How to Diagnose the Problem
- How to Lubricate Plantation Shutters
- Shutter Hinge Adjustment Guide
- Cleaning Your Shutters to Prevent Grinding
- When to Call a Professional
- Frequently Asked Questions
Last Updated: 1 September 2026
What Causes Shutters to Start Grinding
Grinding noises from shutters signal friction in the mechanism and identifying the source early prevents expensive damage. The most common culprits are dust accumulation, dry hinges, and misaligned pivot points, all fixable with basic maintenance.
Dust and debris accumulation
Plantation shutters operate through hinges at the top and bottom, tilt rods that control blade angle, and pivot points where components meet. Dust settles into these gaps relentlessly, building up inside the hinge mechanism, between the frame and shutter panel, and along the tilt rod tracks.
When you operate the shutter, you're grinding accumulated debris between metal surfaces, creating a distinctive rough, rasping noise. This is one of the easiest problems to solve because it requires only cleaning, not replacement parts.
The grinding worsens in homes with high dust production: kitchens with frequent cooking, living spaces near busy roads, or properties undergoing renovation. If you've noticed the noise appearing gradually over weeks or months rather than suddenly, dust is the most likely cause.
Dry hinges and pivot points
Hinges need lubrication to move smoothly. Without it, metal surfaces create friction and grinding noise. Plantation shutters manufactured over two years ago, or those exposed to dry indoor heating during winter, develop this problem frequently.
When lubricant dries out from age, heat, or time, metal-to-metal contact increases. You'll notice grinding throughout the shutter's movement, not just at certain angles. The noise may worsen in winter when central heating dries the air further.
Dry hinges also feel stiffer when you operate the shutter. The blades may not tilt smoothly or may stick partway through their range. This stiffness combined with grinding signals that lubrication is needed.
Hinge misalignment
Shutters hang on precision-engineered hinges. If the frame has shifted from settling in older properties, impact damage, or installation error, even a 2-3mm shift causes the shutter panel to bind as it moves, creating grinding (peer-reviewed research).
Misalignment grinding sounds different from dust grinding and is often accompanied by the shutter catching or binding at specific points in its travel rather than grinding throughout. You might notice the panel sits slightly proud of the frame on one side, or the top and bottom edges don't align evenly.
This problem is more complex than dust or dry hinges because it requires hinge adjustment or, in severe cases, professional realignment. However, many cases of minor misalignment respond well to careful adjustment of the hinge bolts.
How to Diagnose the Problem
Identifying the exact cause saves time and prevents unnecessary repairs. The diagnostic process takes 10-15 minutes and requires only a torch, cloth, and your ears.
Listen for the type of grinding noise
Dust grinding sounds like rough, irregular scraping, similar to dragging sandpaper across wood. It's typically loudest at the beginning of the shutter's movement and may improve slightly as you move the shutter back and forth.
Dry hinge grinding is more consistent and metallic, sounding like metal rubbing against metal throughout the shutter's entire travel. The noise doesn't change much whether you move the shutter slowly or quickly.
Misalignment grinding often includes a catching or binding sensation at specific points, for example, only when opening fully or only in the middle of the tilt range. Close your eyes while operating the shutter and listen carefully. Repeat the movement several times. The pattern of the noise narrows down the cause significantly.
Check for visible debris and damage

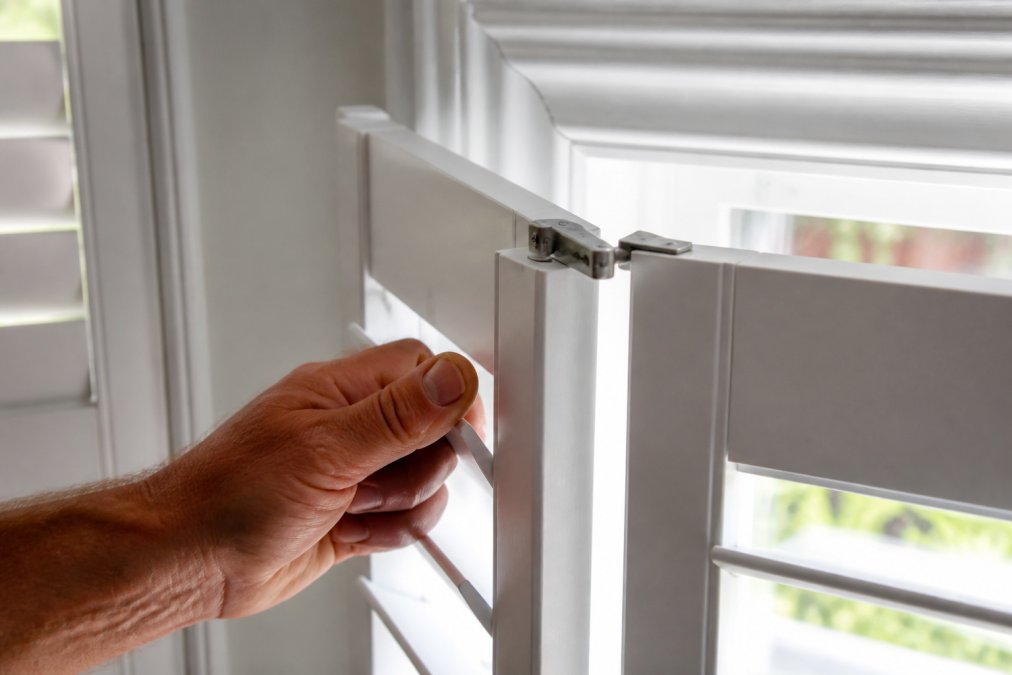

Open the shutter fully and inspect the hinge areas with a torch. Run a cloth along the hinge mechanism. If it comes away grey or brown, dust is the culprit. Check the tilt rod track, the channel that runs horizontally across the shutter frame, for dust buildup.
Look at the frame itself. Is it straight, or does it appear to have shifted? Place a straightedge against the frame edge. If there's a visible gap, misalignment may be the issue.
Examine the hinge bolts. Are they tight, or do they appear loose? A loose hinge bolt allows movement that causes grinding. Gently push the shutter panel sideways; it should not move. If it does, tighten the bolts.
Test the shutter movement
Operate the shutter through its full range of motion slowly and deliberately. Does the grinding occur throughout the movement, or only at certain points? Does the shutter feel smooth, or does it catch or bind?
Try tilting the blades through their full range as well. Grinding during tilting suggests a problem with the tilt rod mechanism or blade hinges. Move the shutter quickly, then slowly. Dust grinding often improves with slower movement. Dry hinge or misalignment grinding typically sounds the same regardless of speed.
How to Lubricate Plantation Shutters
Lubrication is the most common fix for grinding shutters. The process is straightforward, takes 20-30 minutes, and requires only a few pounds' worth of supplies.
Choose the right lubricant
General-purpose oils like WD-40 attract dust and create sticky residue over time, making the problem worse (the CDC). Silicone-based lubricants are the standard choice for plantation shutters because they don't attract dust and provide long-lasting lubrication.
Spray silicone lubricants work well for hinges and pivot points. Alternatively, light machine oil or 3-in-1 oil works effectively. Avoid thick greases or heavy oils; they accumulate dust and make the mechanism stiff.
Apply lubricant to hinges and pivot points

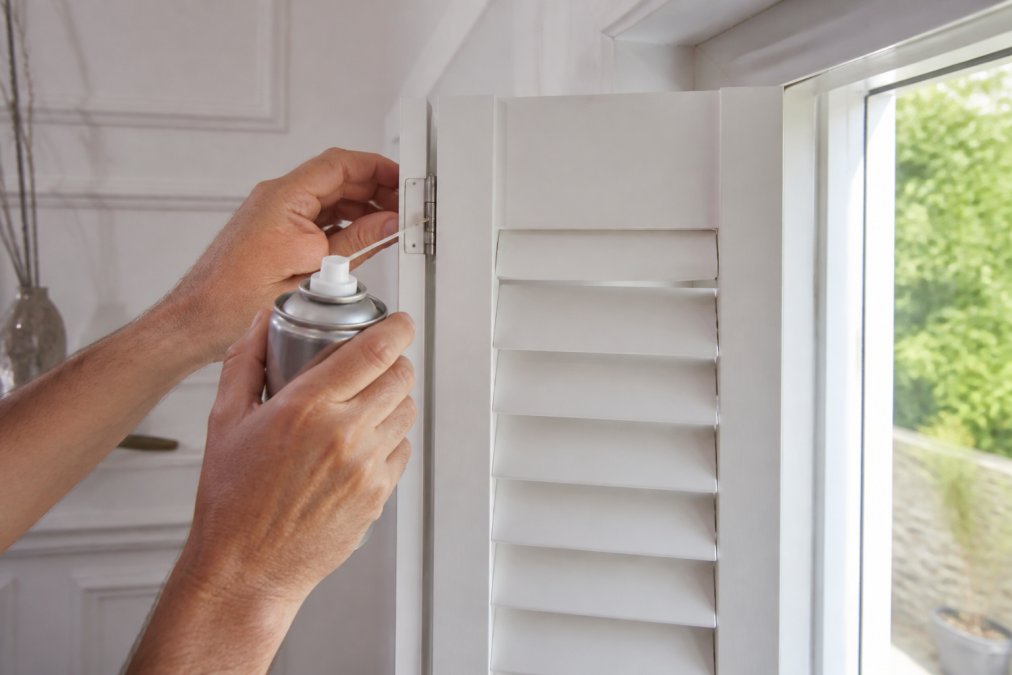

Start with the top hinge. Open the shutter fully for clear access. Apply a small amount of silicone spray directly into the hinge mechanism where the hinge pin enters the hinge body, where friction occurs.
Move to the bottom hinge and repeat. Then apply lubricant to the tilt rod mechanism, the horizontal rod that controls blade angle. Apply spray where the tilt rod enters the frame at both ends and along any pivot points where the rod connects to blade hinges.
Work the lubricant in by operating the shutter gently through its full range. Open and close it several times, then tilt the blades back and forth to distribute the lubricant throughout the mechanism.
Test and wipe away excess
After lubricating, operate the shutter through its full range and listen carefully. The grinding should be noticeably reduced or eliminated. If it persists, the problem may be misalignment rather than dry hinges.
Wipe away any excess lubricant with a dry cloth. Excess spray or oil attracts dust and looks untidy. Allow the lubricant to settle for a few hours before using the shutter extensively.
Shutter Hinge Adjustment Guide
If lubrication and cleaning don't eliminate the grinding, hinge misalignment is likely the cause. Adjusting the hinges requires only a screwdriver and takes 15-20 minutes per hinge.
Identify which hinges need adjustment
Open the shutter fully and observe how it sits in the frame. Does the top edge align evenly with the frame, or is one side higher than the other? Look at the gap between the shutter panel and the frame; it should be consistent around the entire edge.
Close the shutter and look at it head-on. The panel should sit flat and square in the frame. If it appears tilted or twisted, the hinges need adjustment.
Adjust top and bottom hinges
Most plantation shutter hinges have three bolts: one that controls side-to-side position, one that controls forward-and-back position, and one that controls hinge pin tension.
Start with small adjustments. Loosen the relevant bolt by a quarter turn only. Operate the shutter and observe the change. Tighten it back if needed, or loosen further if the adjustment moved in the right direction.
For the top hinge, if the shutter is sitting too far to one side, adjust the side-to-side bolt. If it's sitting too far forward or back, adjust the depth bolt. Make adjustments in quarter-turn increments, testing the shutter between each change.
Never force the bolts. If you encounter resistance, stop and check that you're turning the correct bolt.
Verify alignment after adjustment
After each adjustment, close the shutter and observe the frame gap. It should be even all the way around. Open the shutter and listen; the grinding should be reduced or gone if misalignment was the cause.
If grinding persists after adjustment and lubrication, the problem may be internal hinge damage. At this point, professional inspection is worthwhile because internal hinge damage typically requires hinge replacement.
Cleaning Your Shutters to Prevent Grinding
Regular cleaning prevents most grinding problems from developing. A simple quarterly maintenance routine keeps shutters operating smoothly for years.
Remove dust from slats and frames
Use a soft cloth or microfibre duster to wipe down the blades weekly. Pay special attention to the top and bottom edges where dust settles most.
For the frame, wipe around the perimeter where the shutter meets the wall. Quarterly, use a small brush to clean inside the frame track where the tilt rod sits. A soft brush and dry cloth are sufficient.
Clean hinges and moving parts
Every three months, use a dry cloth to wipe the hinge areas. If you see dust or debris, use a small brush to loosen it, then wipe it away. This takes five minutes and prevents months of grinding problems.
For the tilt rod, run a dry cloth along its length periodically. If it's dusty, use a soft brush to clean it, then wipe with a dry cloth.
When to Call a Professional
Some grinding problems require professional attention. Call a shutter specialist if:
You've cleaned and lubricated the shutters, but grinding persists throughout the shutter's movement. This suggests internal hinge damage beyond simple maintenance.
The hinge bolts are loose or missing. If bolts won't tighten, the hinge itself may be damaged.
The frame appears bent or twisted. A damaged frame requires professional assessment and possible realignment or replacement.
The shutter binds severely or won't move through its full range even after lubrication and adjustment. This indicates a more serious mechanical problem.
You've adjusted the hinges but the shutter remains misaligned. Persistent misalignment after adjustment suggests frame damage or a worn hinge.
At Shutters West London, we assess grinding problems during a free home consultation. We can identify whether the issue is simple maintenance or requires professional repair, and we provide honest guidance on the best solution for your shutters. With 30 years of experience in bespoke plantation shutter installation and maintenance, we've seen every grinding problem there is and know which ones respond to DIY fixes and which ones need professional attention.
Grinding shutters are frustrating, but most cases resolve with basic cleaning and lubrication. If you've worked through these steps and the grinding persists, the hinge mechanism may have internal damage that requires professional inspection. At Shutters West London, we offer a free consultation to assess your shutters and recommend the right fix, whether that's simple maintenance advice or professional repair. Our team has spent three decades perfecting custom plantation shutters for London homes, and we're here to help yours operate smoothly again. Get in touch for a free assessment.
Frequently Asked Questions
Why do my shutters make a grinding noise when opening?
Grinding noises typically come from dry hinges, dust trapped in the pivot points, or misaligned hinges rubbing against the frame. Start by checking whether the noise is a high-pitched squeak or a deeper grinding sound. Squeaking usually indicates dry hinges that need lubrication, whilst grinding often means debris or hinge misalignment. Clean the hinges thoroughly and apply a light lubricant to the pivot points. If the noise persists after lubrication, the hinges likely need adjustment.
How do I stop my shutters from sticking in the frame?
Sticking shutters often result from the same issues that cause grinding: dust accumulation, dry hinges, or hinge misalignment. Clean the entire frame and all moving parts with a soft cloth to remove dust and debris. Apply a thin coat of lubricant to the hinges and pivot points, then open and close the shutters several times to distribute it evenly. If sticking continues, check whether the hinges are properly aligned using a spirit level. Adjust the top and bottom hinges slightly to ensure the shutter panel sits evenly in the frame.
Is it safe to use WD-40 on plantation shutters?
WD-40 and similar penetrating oils are not ideal for plantation shutters. These products are designed to displace moisture and can attract dust and dirt over time, creating buildup on the hinges and making the problem worse. Instead, use a light silicone-based lubricant or a specialist shutter lubricant, which provides smooth operation without collecting debris. Apply sparingly to hinge pins and pivot points, then wipe away any excess with a clean cloth.
Can misaligned hinges cause shutters to grind?
Yes, misaligned hinges are a common cause of grinding shutters. When hinges are not perfectly vertical or horizontal, the shutter panel rubs against the frame as it opens and closes, creating friction and noise. Check alignment with a spirit level on both the top and bottom hinges. Small adjustments to the hinge bolts can often resolve grinding caused by misalignment. If hinges are severely bent or damaged, professional repair or replacement may be necessary.
